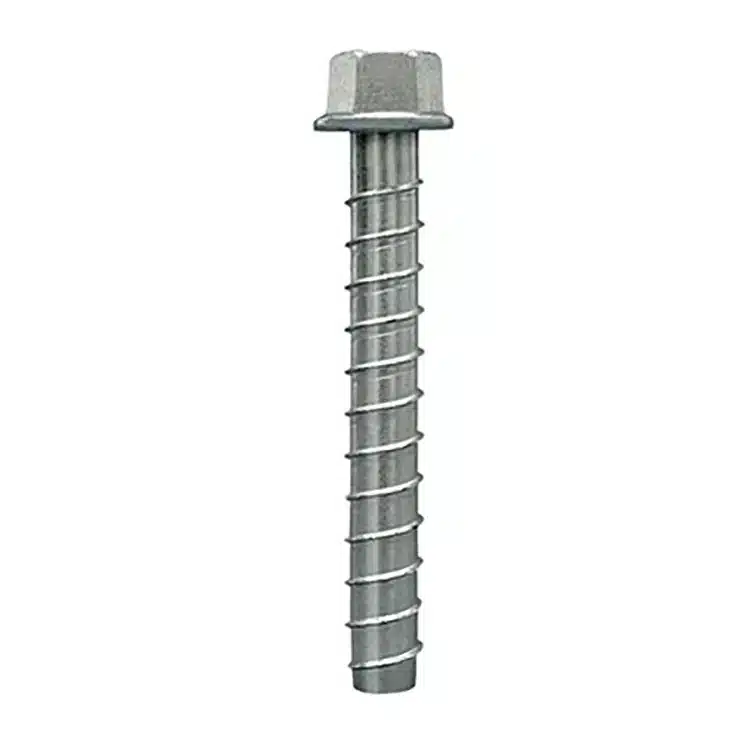

A high-strength screw anchor for cracked and uncracked concrete and masonry. Titen HD offers low installation torque and reliable performance for dry interior or temporary outdoor use.
The stainless-steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. See Stainless-Steel Titen HD for more information.
Key Features
Tested in accordance with ACI 355.2, AC193 and AC106
Qualified for static, wind and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
Standard fractional sizes
Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
Reuse of the anchor will not achieve listed loads and is not recommended
